G-Force Transmissions and Long Shifters

G-Force Transmissions and Long Shifters are the driveline components of choice for many pro stock cars and trucks as well as road race cars, off-road vehicles and high performance street machines.

G-Force Transmissions—Stronger, Lighter, More Efficient
G-Force transmissions utilize a facetooth engagement system to ensure reliable shifting at speeds exceeding 14,000 RPM. All gears are manufactured from military grade 9310 high nickel alloy steel to hold up under severe torque loads. The gears are also designed extra wide for more tooth contact, and excessive weight is removed for decreased inertia. A crowned profile is ground onto each gear after heat treating for more precise tolerances, then shot peened to add an extra level of strength.

In addition to superior gear design, the GF-5R and the GF-2000 utilize a split-case design. All transmissions are cast from high quality aluminum and magnesium alloys for maximum strength and minimal weight. Bearing supports are strategically located near each gear for the utmost stiffness, and low-friction roller bearings are incorporated in all gears and main shafts for near friction-free operation. All G-force transmissions use a Rail Fork design for smooth, effortless shifting with little wear.

about transmissions 2

Click here if you would like help or advice in selecting the proper transmission type and model.

Rear End Kits, Transmission Adapters, Lubricants, Racing Apparel

Long Shifters
Long Shifter’s are made of durable, heat-treated steel and machined using state-of-the-art CNC machining and laser technology. Each unit is hand-built by our factory-trained technicians and thoroughly tested so it arrives ready for installation.

All shifters are black-oxided to add a professional appearance and to protect against rust. An optional titanium shifter for the GF-2000 is also available for the ultimate in low weight and high strength.

If you own a Longs 4-speed or 5-speed in-line shifter and wish to upgrade to Longs 4-speed or 5-speed Pistol Grip Shifter please call- 717-202-8367.

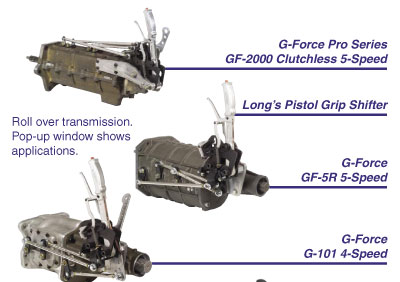

G-Force GF-2000 Cluthless 5-Speed
The GF-2000 transmission is used solely for clutchless applications. This transmission is ideal for, but not limited to, Pro Stock, Pro Stock Truck, Competition Eliminator, or any of the various NMCA, NMRA, or other 10.5-inch tire muscle car applications.

G-Force GF-5R 5-Speed
The GF-5R transmission has a wide range of applications. Some of these often include: drag racing (both clutchless and clutch assisted), road racing, off road, and street/strip vehicles.

G-Force GF4A 4-Speed
The G-Force South GF4A is without question one of the strongest, most reliable 4-speed racing transmissions available for your circle track or road racing application. Exceeded only by G-Force South's own GSR in terms of strength and reliability, the GF4A is the ideal transmission for application requiring a conventional style, externally shifted gear box.

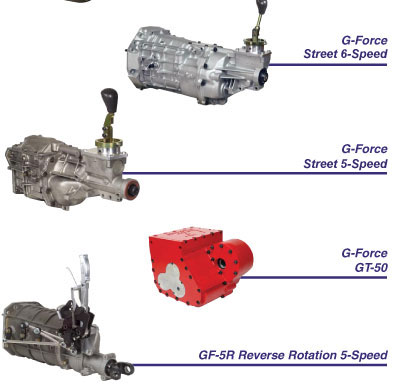

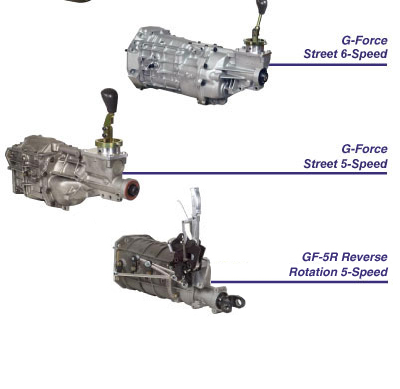

G-Force Street 5-Speed
The G-Force Street 5-Speed has a wide range of applications, both in street cars and race cars. The synchronized version is primarily designed for street cars with up to 600 horsepower, while the dog-ring version is designed to be used in racing applications with approximately 600 horsepower as well.

G-Force GF-5R Reverse Rotation
Our reliable GF-5R 5-speed has now been adapted for use with the reverse-rotation B-series engines. Now anybody running a rear-drive combination can utilize Honda engine technology with a standard, no hassle driveline.

G-Force Street 6-Speed Transmission
G-Force Street 6-Speed TRUE bolt-in kits fit Viper, Corvette, Camaro, and Cobra applications, also available custom installation kits that allow for an even wider range of installations. With the optional G-Force mainshafts, these kits have the ability to handle approximately 900* horsepower and 800 ft-lb. of torque depending on the application

G-Force Honda Transaxle
Honda “B” Series Dog Ring gear set available for Honda and Integra applications.

G-Force 3650
With thousands of T5 and T56 kits already sold, G-Force has come up with another exceptionally durable gear kit. This new gear kit is for the TR3650 5-speed transmission that comes standard in the 2001 to 2010 V8 Mustangs.

G-Force GT4
Our new GT4 is virtually a direct replacement for the T10-style or Muncy-style transmission as it has both standard GM and Ford bolt patterns, similar crossmember mounting dimensions, and various shifter setbacks available.

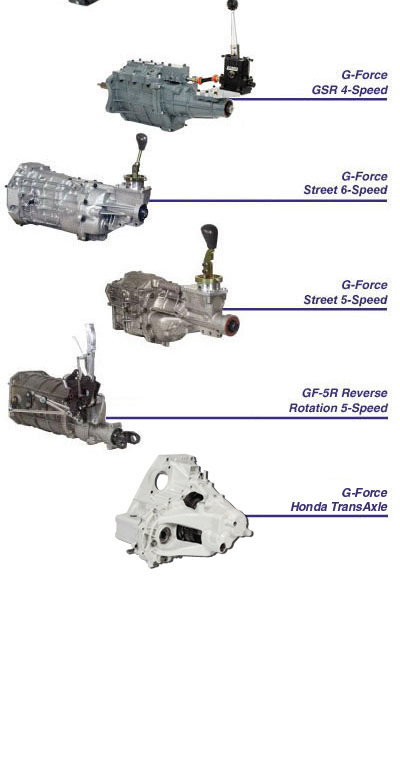

G-Force GSR 4-Speed Transmission
The G-Force South GSR is absolutely the end of the line in terms of absolute strength and performance from a 4-Speed racing transmission for your circle track or road racing application. With its' single rail, internally shifted design no other transmission offers the GSR's uniqueness and versatility. Click here for CHINESE or RUSSIAN

G101A
The G101A racing 4-speed transmission is the ultimate in 4-speed performance. This transmission can be built as a clutchless or clutch assisted model and has a wide range of applications.

GF2400
4-Speed GF2400 can handle upwards of 1900 HP with ease and requires no chassis modifications to install in the place of the previous generation GF2000s. Along with all of the internal improvements, there are also more input shaft choices and more shifter locations available.
